Chelsea 870 PTO

The new Chelsea 870 PTO provides you with a compact housing that helps eliminate clearance issues. Two assembly arrangements are offered that maximize your installation possibilities. High capacity bearings and superior gear designs provide you with torque ratings up to 670 Lbs. ft. for the ultimate performance. There is no need to de-rate this Chelsea power take off unit for continuous applications. The 870 Series is a 10-Bolt mounting pattern that will fit on today’s popular automatic transmissions. It features six shift options, four of which are integrated into the PTO housing that require one hose for a simplified installation. Product code: 870XFFJP-D5XV.

GET A QUOTE

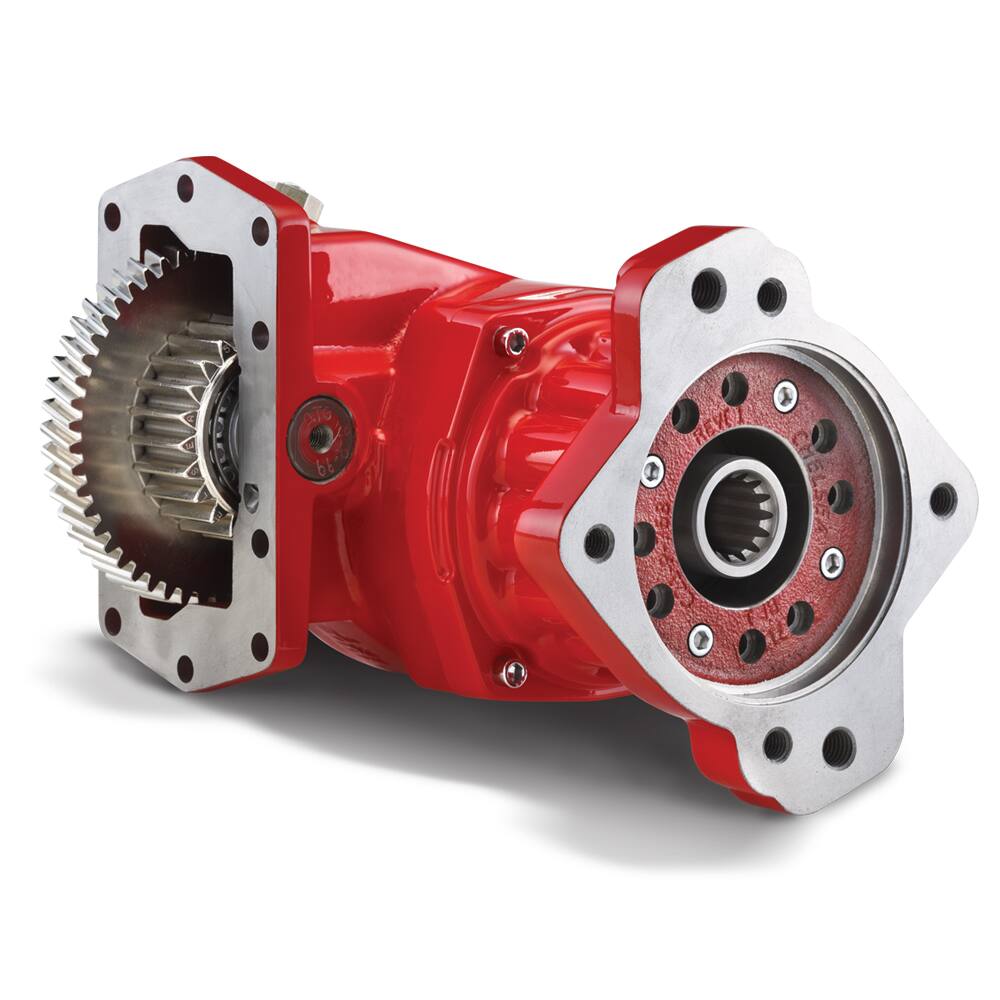

870 Series_zm
  • Overview
  • Tech Specifications
  • Product Support

The 870 Series has a popular Electronic Overspeed Control (E.O.C.) is also available to protect your driven equipment. Eight internal gear ratios provide you with a wide variety of speeds to meet your application requirements. The direct mount pump flange options are available with our Wet Spline design that provides you with increased P.T.O. and pump shaft life. Versatility, power, ease of maintenance and installation make the 870 Series the only choice for your vocational truck requirements. It also offers a Torque capacity up to 670 Lbs. ft./908 N.m. – Compact housing height reduces clearance issues – Integral actuation valve simplifies plumbing and reduces installation time – Remote mount valve solves installation interference problems – Electronic Overspeed Control (E.O.C.) protects driven equipment, Nine speed ratios – Nine output options – Wet Spline pump flange extends P.T.O. and pump shaft life
