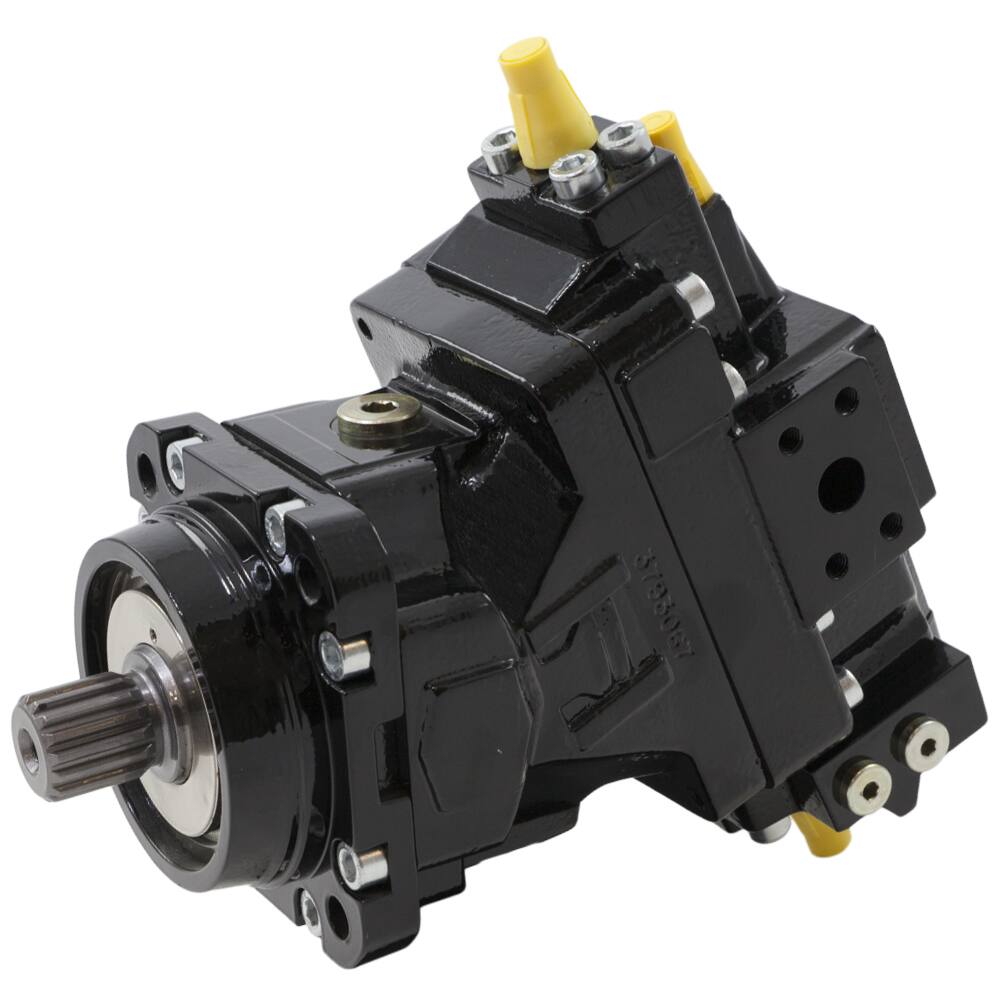

Parker V12 Motors

The Parker V12 Series is a bent-axis, variable displacement motor. The Parker V12 motor is intended for both open and closed circuits, mainly in mobile applications, but the V12 can also be utilized in a wide variety of other applications. The V12 series can operate continuously at 420 bar & up to speeds of 7000 RPM dependent on displacement.

GET A QUOTE
V12
V12
V12
  • Overview
  • Tech Specifications
  • Product Support

The V12 series is available in two displacements 60 cc & 80 cc and are available as ISO, SAE or Cartridge versions. The V12 design allows the motor to operate & high speeds & comes with a wide range of controls for most applications. The 9 piston design provides high start-up torque & smooth operation. The small & compact desing makes for a clean & cost effective installation & high power-to weight- ratio. Positive piston locking, strong synchronizing shaft, heavy-duty bearings and small number of parts add up to a compact and robust motor with long service life and proven reliability.

Parker V12 Motor Product Codes:

  • V12-060-TA-IV-D-000-D-0-060/01
  • V12-060-TA-IV-D-000-D-0-060/012-ACI01I-150/015
  • V12-080-MS-SV-S-000-P-080/03
